4 inch 8 ohm Loud Speaker 4in 10 watt max Mame/Arcade/Pinball

$ 3.49

222214845367
Availability:
In Stock
Product Code:
222214845367
Brand:
ProTechTrader

Description

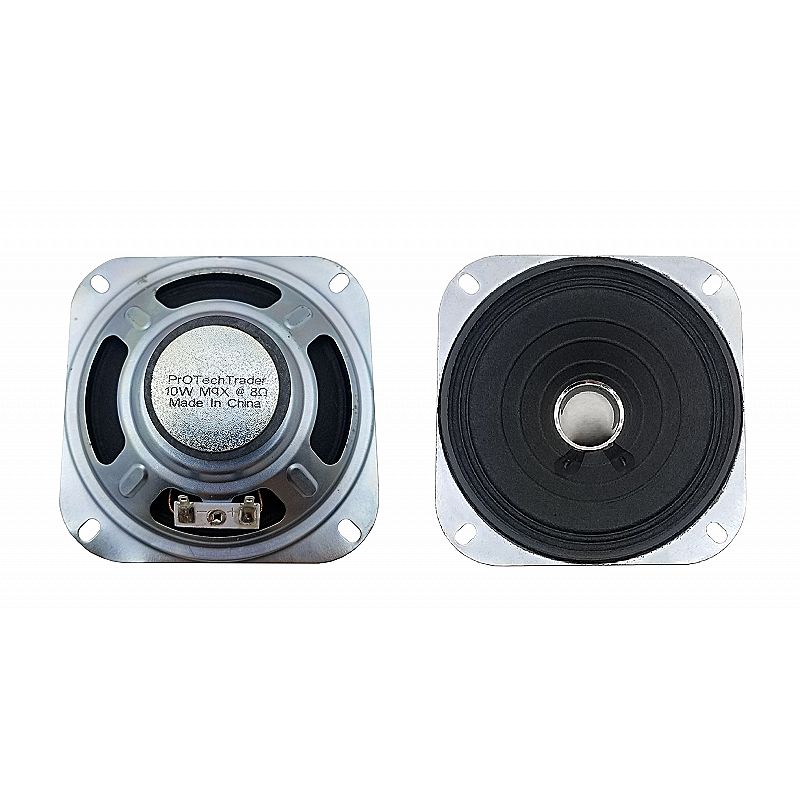

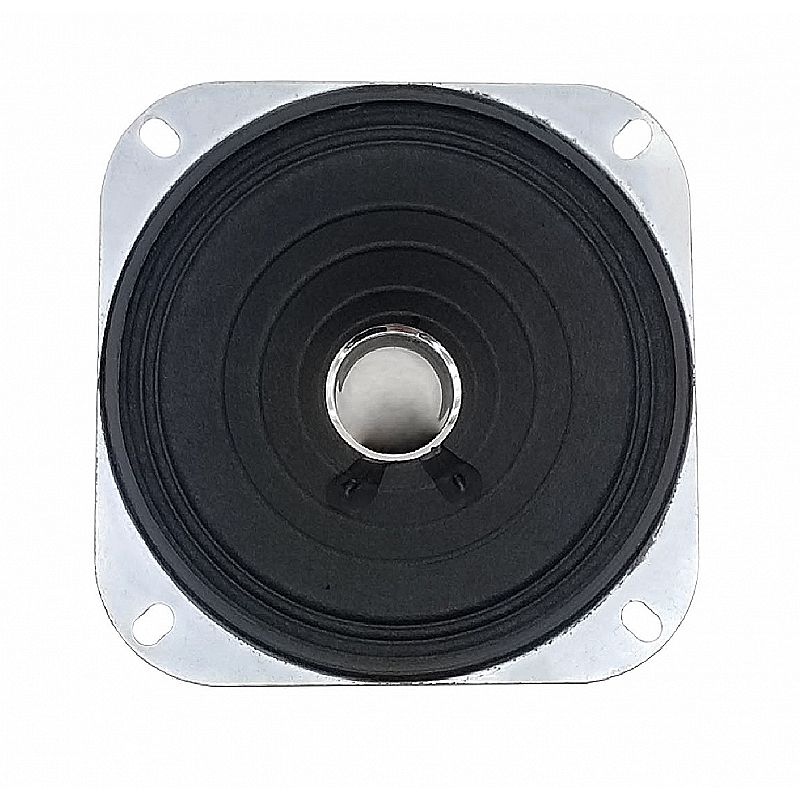

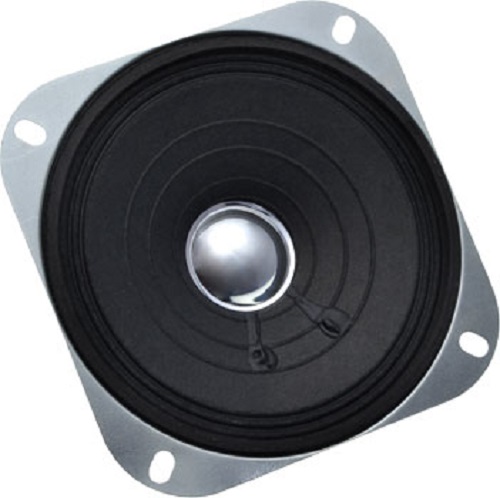

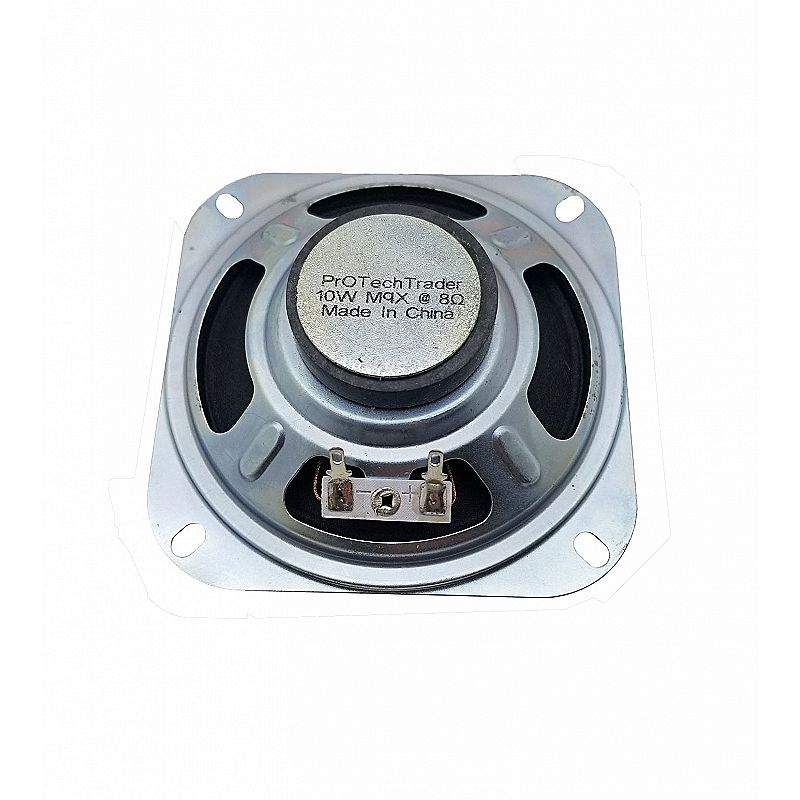

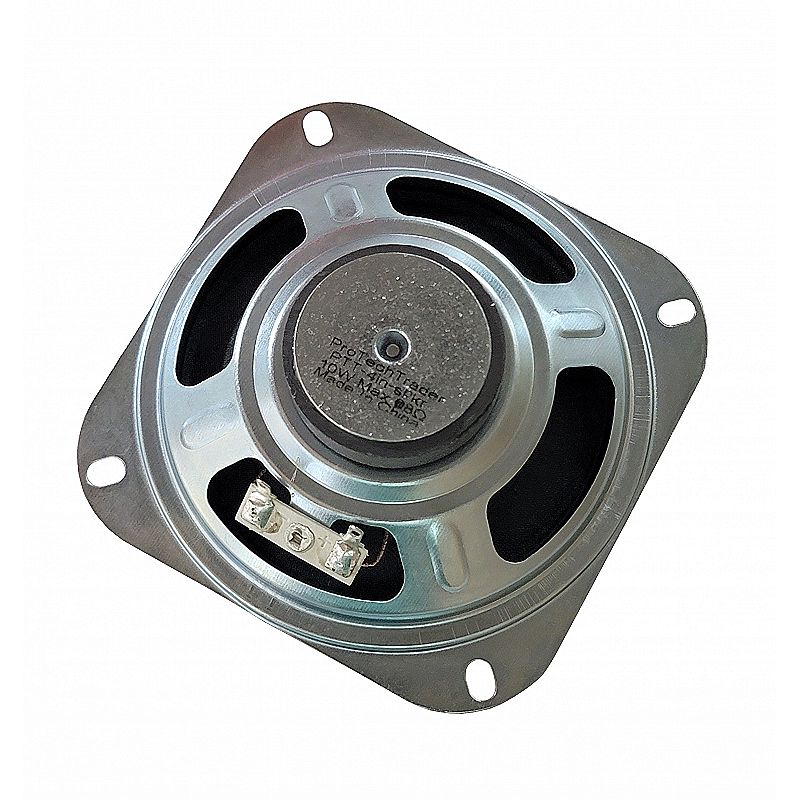

4 inch (102mm) 8 ohm Loud Speaker(s)
Power Rating (maximum): 10w
Power Rating (nominal): 5w

1 (Single Speaker)



Great for Arcade Machines, Pinball & Mame Cabinets

Specifications:
Total Dimensions: 102mm x 102mm x 32mm
Magnet Dimensions: 40mm x 19mm x 8MM
Normal Impedance: 8ohm +- 15%
Resonant Frequency: 160hz +- 20% @ 1vS.P.L.: 86db +- 3dB @ 1w/1m
Effective Frequency Band: 20Khz
THD: Maximum 5%

Mounting Screw Pattern:
They are 3.15 inches / 80mm apart going around the square.
The diagonal between mounting holes is just under 4.5 inch or just about 114mm.
