Radioshack Make Electronics Component Pack 2 - 1st Edition - Newer Version Available

Radioshack Make Electronics Component Pack 2 - 1st Edition - Newer Version Available

$99.99

Be the first to leave a product review
Model #:
2760352
SKU:
Brand:
Radio Shack
UPC:
040293972356
SKU:
MakeComp2
MPN
2760352

Description

Make: It Electronics Component Kit 2*

***2nd Kit in a series designed for the 1st edition only of Make: Electronics by Charles Platt (2009)***

*** Replaced by the new Make: Electronics 2nd Edition Book &

Electronic Kits available below:



ProTechTrader.com: Electronics Kit for Make: Electronics 2nd Edition

Amazon.com: Electronics Kits for Make: Electronics 2nd Edition

eBay.com: Electronics Kit for Make: Electronics 2nd Edition

Walmart.com: Electronic Kits for Make: Electronics 2nd Edition



Author Charles Platt's Official Site Recommending Kits for his best selling STEM Electronics Educational Book, Make: Electronics 2nd Edition: http://www.plattkits.com/kits/

ProTechTrader's Electronics Kits are the only authorized electronics component packs that cover all of the experiments in the Make: Electronics 2nd edition book





Make: It Component Kit 2Make: It Component Kit 2Make: It Component Kit 2

Make: It Component Kit 2

Catalog #: 2760352

All you need to build experiments 12-24 in the Make: Electronics 1st edition book (2009) by Charles Platt.

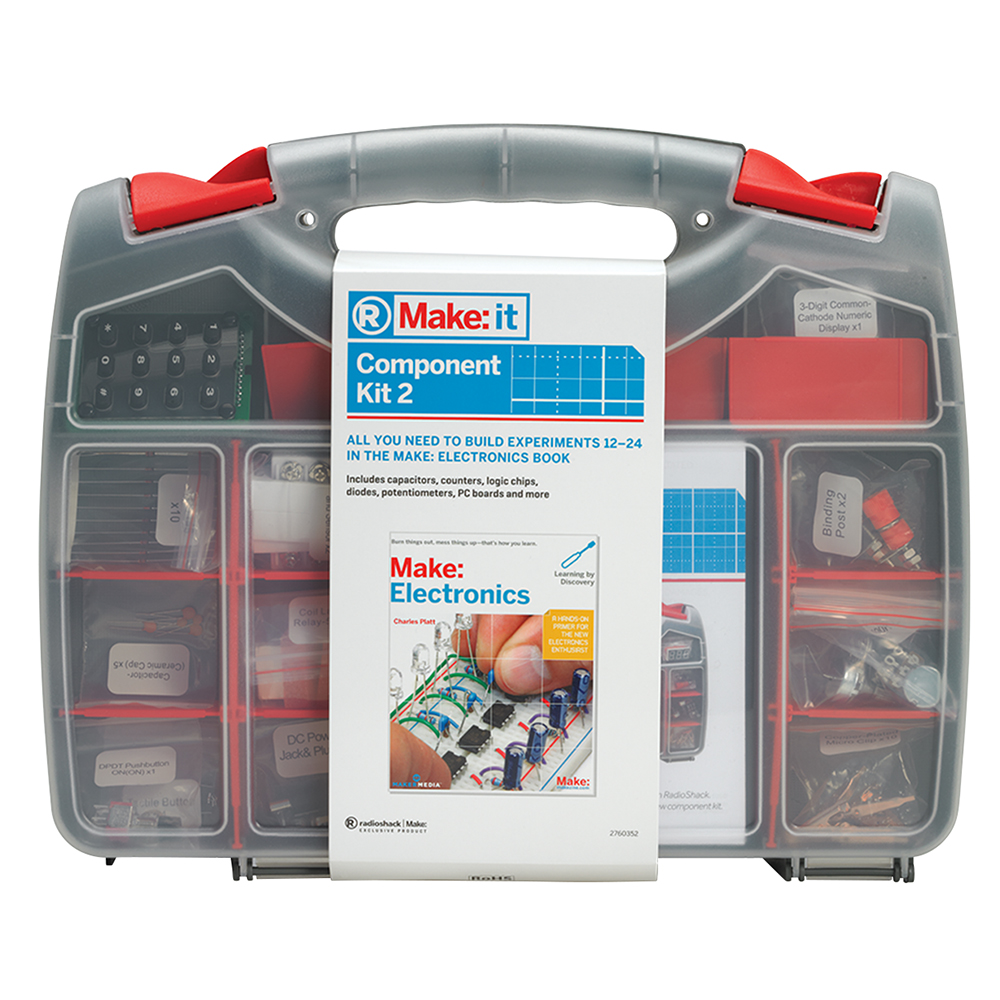

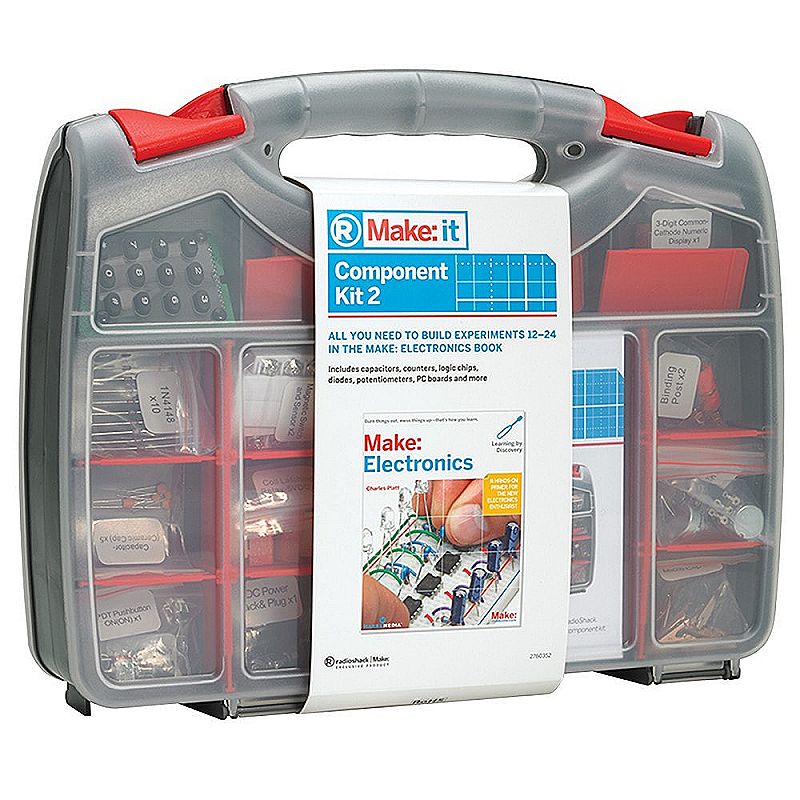

The second companion pack to the Make: Electronics 1st edition book covers the experiments from Chapters 3 and 4. We've spent hours sourcing these hard-to-find parts! This pack continues where Components Pack 1 left off and delves into integrated circuits, digital electronics, and soldering skills. With over 130 components, organized in a rugged tackle-style box, you'll be ready to start working on some excellent projects as soon as you crack open this unique, hands-on book. Build the circuits first, then learn the theory behind them. With Make: Electronics, you'll learn all of the basic components and important principles through a series of "learn by discovery" experiments. And, you don't need to know a thing about electricity to get started.

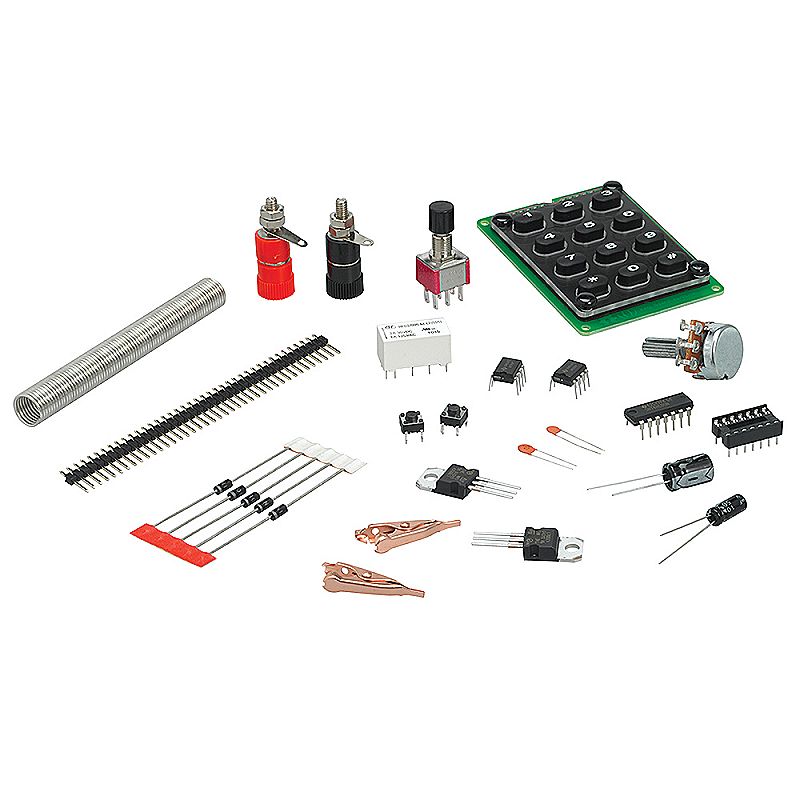

Part List:

  • 2 ceramic capacitors (10nF)
  • 3 ceramic capacitors (100nF)
  • 2 electro capacitors (1uF 50V)
  • 2 electro capacitors (330nF 50V)
  • 2 electro capacitors (10uF 50V)
  • 2 electro capacitors (100uF 50V)
  • 2 electro capacitors (220uF 50V)
  • 2 electro capacitors (47uF 50V)
  • 2 electro capacitors (68uF 63V)
  • 1 3-digit common cathode numeric display
  • 2 coil latching relays (5V DC)
  • 4 tactile buttons
  • 2 open-collector inverters ICs (SN7406N)
  • 2 triple-input NOR ICs (74LS27P)
  • 2 counter ICs (74LS92)
  • 4 counter /multiplier/divider logic ICs (CD4026BE)
  • 10 timers (NE555P)
  • 3 voltage regulator (L7805)
  • 4 logic chips (SN74HC00N)
  • 4 logic chips (SN74HC02N)
  • 4 logic chips (SN74HC04N)
  • 4 logic chips (SN74HC08N)
  • 4 logic chips (HD74HC32P)
  • 4 logic chips (SN74HC86N)
  • 5 diodes (1N4001/50V, 1A)
  • 10 diodes (1N4148/100V, 150mA)
  • 1 12-key numeric common terminal keypad
  • 5 IC DIP sockets (2x4 pin)
  • 5 IC DIP sockets (2x7 pin)
  • 5 IC DIP sockets (2x8 pin)
  • 1 potentiometer (5K linear)
  • 1 potentiometer (10K linear)
  • 1 potentiometer (100K linear)
  • 1 potentiometer (10K trimmer)
  • 1 DPDT pushbutton
  • 1 DC power jack
  • 1 DC power plug
  • 1 project box
  • 1 binding post (Red)
  • 1 binding post (Black)
  • 2 PC board (47x72mm)
  • 2 PC board (53x133mm)
  • 2 plain perforated PC board (76x101mm)
  • 1 Heat-shrink tubing
  • 1 piezoelectric beeper
  • 2 magnetic switch/sensors
  • 10 copper-plated micro clips
  • 1 lead-free solder tube
  • 1 40-pin 100 straight male header
  • 1 40-pin 100 straight female header
