International Rectifier IRF7413 Mosfet (FET 6) MightyBoard CTC/Replicator Clone (Model: IRD7413)

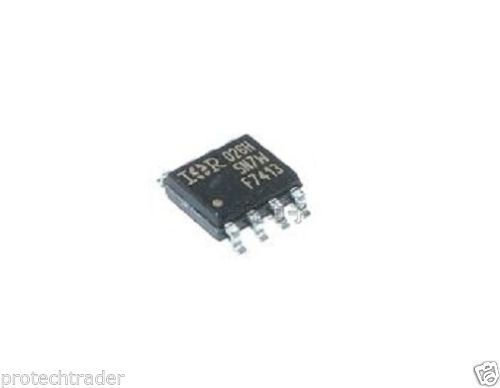

International Rectifier IRF7413 N-Channel MOSFET - MightyBoard Replacement (FET 6) for Replicator Clone 3D Printers

Restore Full Functionality to Your 3D Printer's MightyBoard

The International Rectifier IRF7413 MOSFET (Model: IRD7413) is the essential replacement component for restoring software-controlled active cooling fan functionality on MightyBoard-equipped Replicator Clone 3D printers. This high-quality N-Channel MOSFET serves as FET 6 on the MightyBoard, enabling precise control of your CS-FAN output for optimal print cooling and superior print quality.

Why Your 3D Printer Needs This MOSFET

Many Replicator Clone 3D printers ship with the FET 6 position unpopulated on their MightyBoard controllers, leaving users without software-controllable active cooling capabilities. This missing component prevents your printer from dynamically adjusting fan speeds during prints, which is crucial for achieving professional-quality results, especially with materials like PLA that benefit from active cooling during printing. The IRF7413 MOSFET fills this gap, unlocking your printer's full potential.

Technical Specifications

• Part Number: IRF7413 / IRD7413
• Manufacturer: International Rectifier
• Type: N-Channel MOSFET
• Voltage Rating: 30V
• Current Rating: 13A
• On-Resistance: 0.011 Ohm (Ultra-low RDS for minimal heat generation)
• Package Type: SO-8 Surface Mount

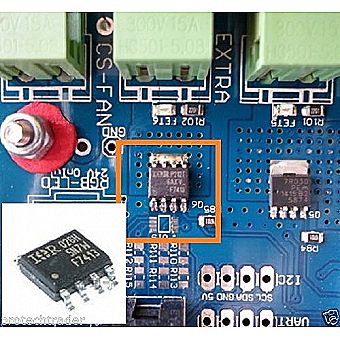

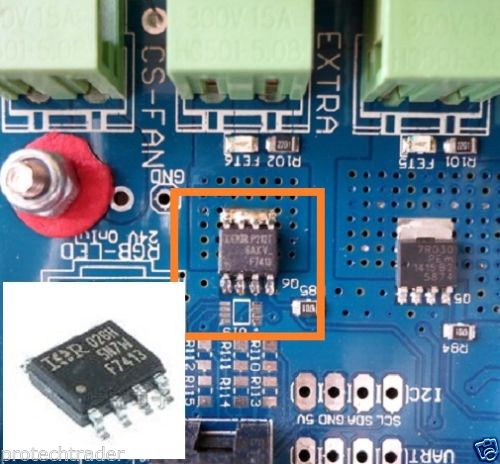

• Board Position: FET 6 on MightyBoard
• Output Control: CS-FAN MightyBoard Output
• Quantity: 1x MOSFET

Perfect Substitute for Hard-to-Find Components

The IRF7413 serves as an excellent substitute for the PSMN7R0-30YL chip, which has become increasingly difficult to source. With identical electrical characteristics and pin-compatible SO-8 packaging, this MOSFET provides a reliable, readily available alternative that performs equally well in MightyBoard applications. No circuit modifications required—it's a direct drop-in replacement.

Key Features & Benefits

• High Current Capacity: 13A rating handles demanding cooling fan applications with ease
• Low On-Resistance: 0.011 Ohm minimizes power loss and heat generation for reliable operation
• Software-Controlled Cooling: Enables dynamic fan speed control through your 3D printer firmware
• Direct Replacement: Fits FET 6 position on MightyBoard controllers perfectly
• Wide Compatibility: Works with CTC Replicator Clones and many MightyBoard-based 3D printers
• Proven Reliability: International Rectifier quality ensures long-lasting performance
• Better Print Quality: Proper cooling control improves layer adhesion and reduces warping

Compatible Applications

• CTC Replicator Clone 3D Printers
• FlashForge Creator Series (with MightyBoard)
• Wanhao Duplicator 4 Series
• PowerSpec 3D Pro
• Any 3D printer utilizing MightyBoard controller with CS-FAN output

Installation Requirements

Important: This component requires intermediate to advanced soldering skills for proper installation. Surface-mount SO-8 package installation requires:

• Temperature-controlled soldering station
• Fine-tip soldering iron or hot air rework station
• Flux and appropriate solder
• Steady hand and experience with SMD components
• Basic electronics knowledge for proper orientation and installation

If you're not comfortable with surface-mount soldering, we recommend seeking assistance from a qualified electronics technician or maker space.

Unlock Your Printer's Full Cooling Potential

Don't let a missing FET 6 component limit your 3D printing capabilities. The IRF7413 MOSFET is a small investment that delivers significant improvements in print quality, especially for detailed prints and bridging operations where controlled cooling makes all the difference. At just $6.01, this essential component pays for itself with better prints and expanded material compatibility.

Order Your IRF7413 MOSFET Today

Ready to enable software-controlled active cooling on your MightyBoard? Add this genuine International Rectifier IRF7413 MOSFET to your cart now and restore full functionality to your Replicator Clone 3D printer. Fast shipping, quality guaranteed, and the exact component you need to complete your MightyBoard upgrade.
