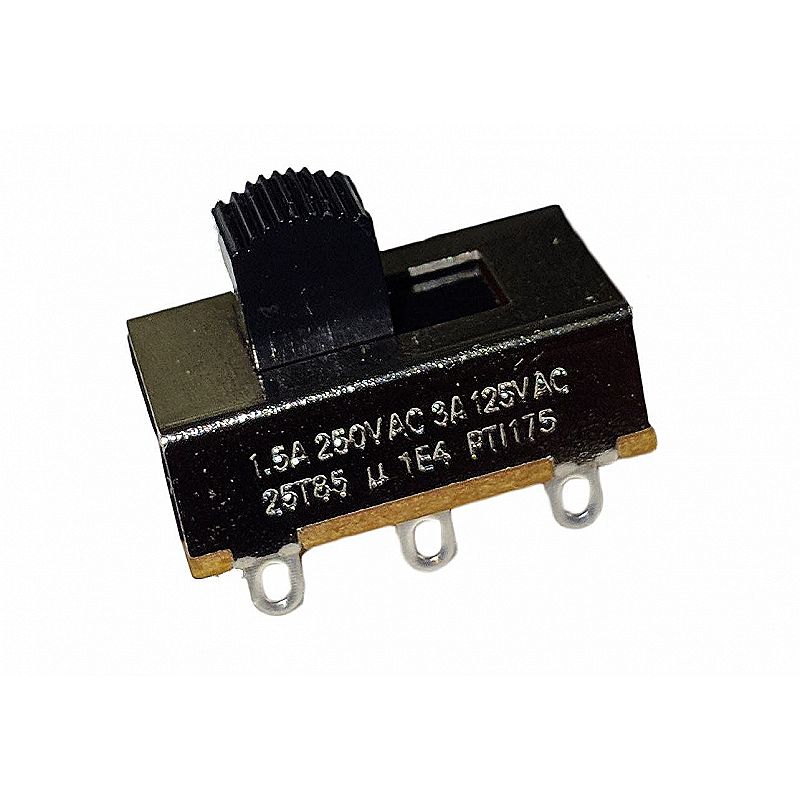

Single-Pole Double-Throw (SPDT/1P2T) Large Slide Switch with Lug Terminals - 7.4mm Spacing

Single-Pole Double-Throw (SPDT/1P2T) Large Slide Switch with Lug Terminals - 7.4mm Spacing

$3.99

$
Model #:
PTT-LRG-Slider-Switch-7.4lugs
Brand:
ProTechTrader
UPC:
SKU:
MPN

Description

Single-Pole Double-Throw (SPDT/1P2T) Large Slide Switch with Lug Terminals - 7.4mm Spacing

Specifications:

Electrical Rating: 1.5A 250VAC
Contact Resistance: < 50mΩ
Insulation Resistance: > 100m OHM (at 500VDC)
Terminal-Terminal Max: 1500V AC/10mA/5s
Terminal-Knob Max: 3000V AC/10mA/5s
Operating Life: 10000 Cycles
Operating Force: 3N- 4.5N

Dimensions (LxWxH):
Body: 22mm x 12.7mm x 7.6mm
Knob: 6.5mm x 5.4mm x 7mm (5.5mm Travel)
Lugs: 2.6mm x 0.5mm x 5mm
