ProTechTrader Make: Electronics Mini Kits (3rd Ed) - Electronic (Model: Make-Electronics-Mini-Kits-3rd-Edition)
What You'll Build & What's in the Box
Explore the hands-on experiments and genuine components included in Charles Platt's curriculum.
The Nature of Electricity
- Exp 1: Taste the Power — 9V DC battery sensations and moisture conductivity.
- Exp 2: Let's Abuse a Battery — Short circuits, current limits & thermal expansion.
- Exp 3: Your First Circuit — Resistor current limiting with protective LEDs.
- Exp 4: Variable Resistance — Linear potentiometers, voltage division & multimeter reading.
- Exp 5: Let's Make a Battery — Galvanic chemical cells with copper and zinc.
Switching & Transistors
- Exp 6: Very Simple Switching — SPST, SPDT & DPDT relay mechanisms.
- Exp 7: Investigating a Relay — Coil inductance and relay buzzer audio feedback.
- Exp 8: A Relay Oscillator — RC timing circuits with electrolytic capacitors.
- Exp 9: Time & Capacitors — Measuring RC time constants with DMM.
- Exp 10: Transistor Switching — NPN 2N2222 base current amplification.
- Exp 11: Modular Oscillator — Unijunction transistor (2N6027) audio pitch generator.
Soldering & Security
- Exp 12: Joining Two Wires — Heat transfer, flux core solder, and splice joints.
- Exp 13: Broader Soldering Skills — Perforated protoboard assembly.
- Exp 14: Burglar Alarm Circuit — Magnetic reed switches with latching relays.
Chips, Timers & Logic
- Exp 15: Good Little 555 Timer — Astable multivibrator pulses and duty cycles.
- Exp 16: Emitting a Tone — 8-Ohm loudspeaker audio frequency generation.
- Exp 17: Alarm Project — Two-tone warbling siren with dual 555s.
- Exp 18: Reflex Tester — Logic gates (NAND, NOR, AND, OR) decision circuits.
- Exp 19: Learning Logic — Truth tables with 74HC series logic ICs.
| Category | Specific Part Numbers & Values Included | Tolerance / Spec |
|---|---|---|
| Integrated Circuits | Texas Instruments NE555P Timer, CD4026BE Decade Counter, LM324 Op-Amp, 74HC00, 74HC02, 74HC08, 74HC32, 74HC86 | DIP-8 / DIP-14 / DIP-16 |
| Transistors & Diodes | 2N2222, 2N3904 (NPN), 2N3906 (PNP), 2N6027 PUT, 1N4148 High-Speed Switching, 1N4001 Rectifier, 1N34A Germanium | TO-92 / DO-35 / DO-41 |
| Resistors (1% Metal Film) | Full E24 Series: 100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 470kΩ, 1MΩ | 1/4 Watt, ±1% Precision |
| Capacitors | Electrolytic: 1µF, 2.2µF, 10µF, 47µF, 100µF, 220µF, 470µF, 1000µF • Ceramic Discs: 10nF, 100nF, 22pF, 47pF | 50V Rated, Radial Leads |
| Hardware & Prototyping | 830-Point Solderless Breadboard, 700-Point Single Bus Breadboard, 65pc Pre-Stripped Jumper Wire Bundle, 9V Battery Snaps | Heavy-Duty Spring Tension |
| Audio & Actuators | 8-Ohm 2-inch Mylar Cone Loudspeaker, 12V SPDT Relays, DPDT Slide Switches, SPST Momentary Pushbuttons | PCB & Breadboard Compatible |
- ✓ Complete Experiments 1–11 Components
- ✓ 830-Point Solderless Breadboard
- ✓ 65-Piece Flexible Jumper Wire Bundle
- ✓ Individually Bagged & Labeled Parts
- ✗ Tools & Case Sold Separately
- ✓ All Economy Pack Components
- ✓ Double-Sided Rugged Organizer Case
- ✓ Digital Multimeter with Test Probes
- ✓ Multi-Gauge Precision Wire Strippers
- ✓ Safety Goggles & Alligator Clip Leads
- ✓ Kit 1 Deluxe Pack (Exps 1–11)
- ✓ Kit 2 Component Pack (Exps 12–34)
- ✓ Logic Gates, 555s & Decade Counters
- ✓ Dual Compartmentalized Tackle Cases
- ✓ Full Workshop Tool Suite Included
Quick Product Overview

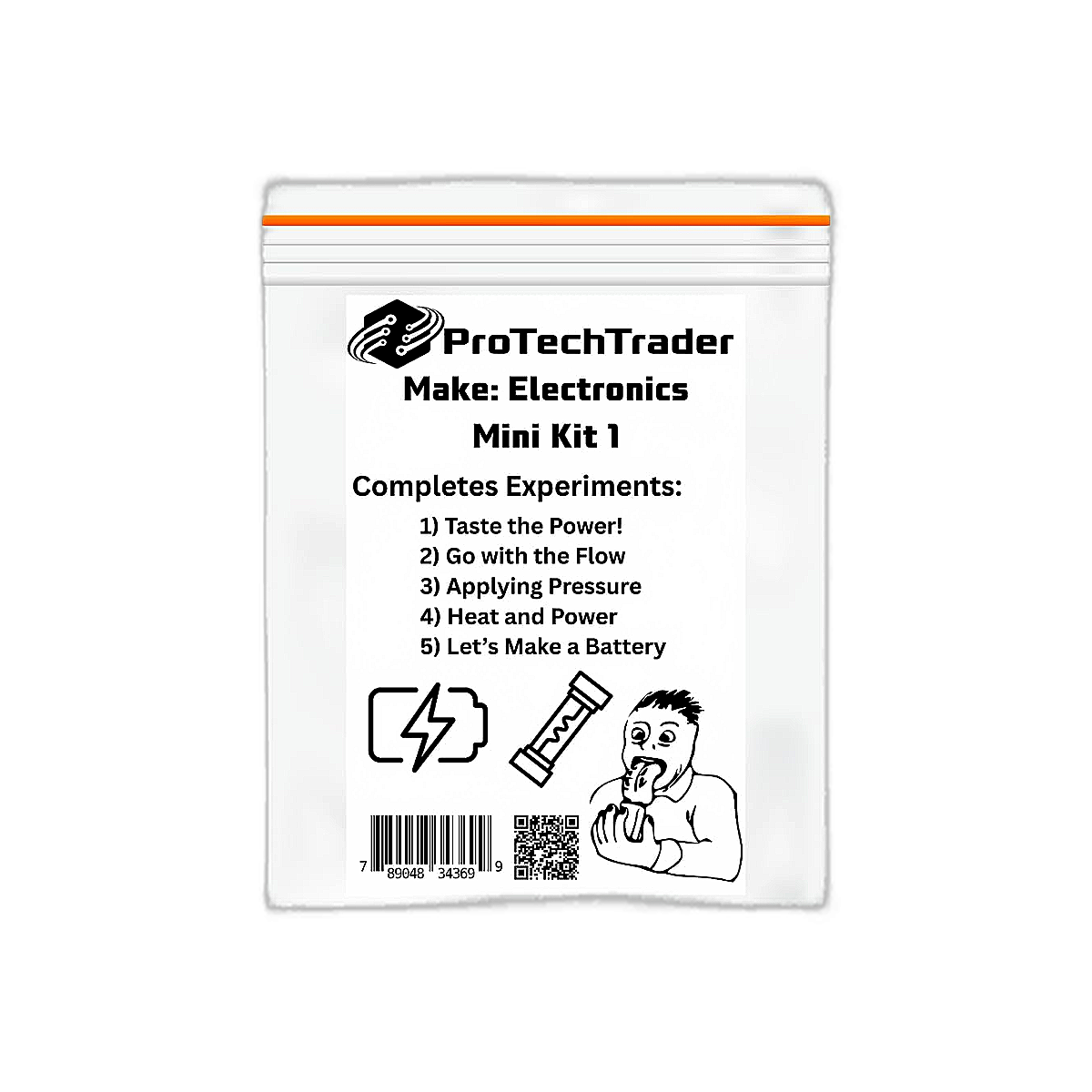

The ProTechTrader Make: Electronics Mini Kits (3rd Edition) bundle includes 5 modular component packs following Charles Platt's updated 3rd Edition experiments. Each mini kit is individually packaged and labeled with high-quality breadboards, ICs, sensors, and hardware.
Make: Electronics Mini Kits 3rd Edition - Hands-On Learning Component Packs
Master electronics fundamentals with the Make: Electronics Mini Kits 3rd Edition – precision-curated component packs designed to work seamlessly with the bestselling Make: Electronics book by Charles Platt. These focused mini kits eliminate the guesswork from learning electronics, providing exactly the components you need for specific experiments without the overhead of purchasing a full component set all at once.
The ProTechTrader electronics kits are highly recommended by Charles Platt himself, the author of the 3rd Edition of Make: Electronics, and are a perfect introduction for new electronics enthusiasts. Geared towards beginners, Make: Electronics 3rd Edition is the top educational book for students through professional adults wanting to learn basic electronics and circuit design. Each kit comes with components neatly bagged and clearly labeled for your convenience, providing an excellent base for any beginner to learn basic electronics or any professional to build prototype circuits. A popular choice for students and teachers in STEM programs!

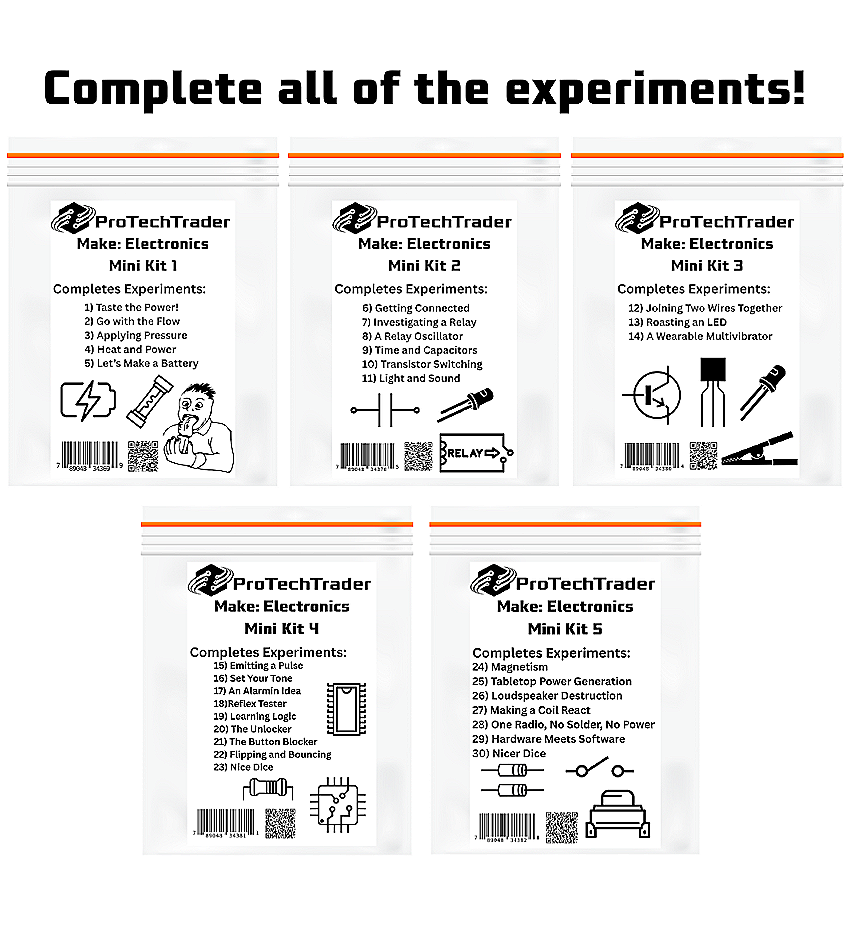

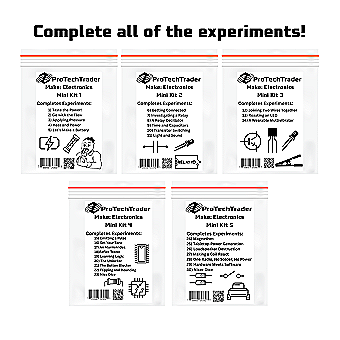

Select your Mini Kit option from the drop-down menu above. Each Mini Kit corresponds to a specific section of the book. You may purchase kits individually or combine multiple kits as you progress through the curriculum. Complete your purchase and store your components in our Storage Organizer Carrying Case!
Why Choose Make: Electronics Mini Kits?
Learning electronics shouldn't mean buying hundreds of components you'll never use. The Make: Electronics Mini Kits 3rd Edition solve this problem by offering targeted component packs that correspond directly to experiments in the Make: Electronics textbook. Whether you're a student, hobbyist, educator, or maker just starting your electronics journey, these kits provide an affordable, efficient path to hands-on learning. Burnt out an LED or fried a transistor? Replacement components are readily available so you can continue learning without interruption.
Perfect For
- Electronics beginners following the Make: Electronics book
- Students in STEM programs and electronics courses
- Educators teaching hands-on electronics fundamentals
- Makers and hobbyists exploring circuit design
- Parents supporting children's interest in electronics and engineering
- Self-learners building practical electronics skills
- Maker spaces and hackerspaces stocking educational materials
Quality and Compatibility You Can Count On
ProTechTrader stands behind the quality of every Make: Electronics Mini Kit. All components are carefully selected to meet the specifications outlined in the 3rd Edition curriculum, ensuring full compatibility with the book's experiments. Components arrive organized and labeled so you can focus on learning rather than sorting parts. These kits are specifically designed for the 3rd Edition of Make: Electronics – please ensure you have the correct edition of the book before selecting your kit.
Orders over $35 qualify for free shipping, making it easy and economical to stock up on multiple experiment kits as you work your way through the entire Make: Electronics curriculum.
???? Ready for the next step?
Check out Make: More Electronics — the official sequel kit now shipping.
Learn & Make: Related Guides
Want to learn more about using this component? Check out our Semiconductor Components Guide for step-by-step projects, tips, and reference details.
| Technical Specifications | |
|---|---|
| Curriculum | Make: Electronics 3rd Edition by Charles Platt |
| Mini Kits Included | 5 Modular Component Kits |
| Key Components | 555 Timers, Logic Chips, Relays, Transistors, LEDs, Breadboards |
| Skill Level | Beginner to Intermediate STEM Prototyping |
| Storage | Organized modular component bags |
Frequently Asked Questions
Yes, this mini kit set is tailored specifically to match the component lists in the 3rd Edition book.
Yes, all components insert into solderless breadboards for repeated experimentation.
🎬 1080p Workbench Demonstration & Circuit Schematics
Watch step-by-step breadboard wiring, oscilloscope waveforms, and circuit verification for experiments in this series.
Includes high-resolution IEEE schematic diagrams, breadboard layouts, and multimeter checkpoint tables.
