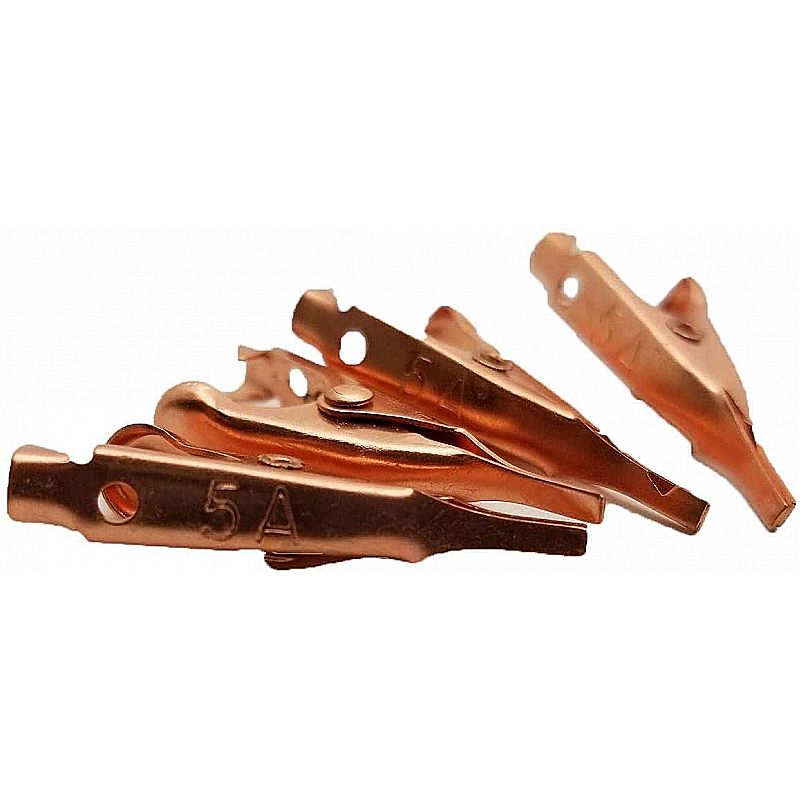

Smooth Toothless Alligator Clips Solid Copper - 4 Pack - 1.1in Small 5 amps (5a)

$5.79

Be the first to leave a product review
Model #:
Smooth-Copper-Clips-4pcs
SKU:
Brand:
ProTechTrader
UPC:
789048343194
SKU:
Smooth-Copper-Clips-4pcs
MPN
Smooth-Copper-Clips-4pcs

Description


  • Smooth Toothless Solid Copper Alligator Clips for use as a soldering heat sink or quick clip on test lead wire connector
  • Excellent Heat Transfer Makes Solid Copper Alligator Clips The Best Soldering HeatSinks To Protect Delicate Thermal Sensitive Electronic Components
  • Rated for up to 5 amps of current and 12 awg (12ga) stranded hook-up wire
  • Great addition to any DIY Electronics Enthusiast or Hobbyist - Make Test Leads or Protect ICs, circuits, and other heat Sensitive parts when soldering
  • Overall Length: ~1.1" (27.8mm) | Max Jaw Opening: ~.25" (6mm) | Crimp or Solder Connection | Current Rating: 5 Amps | Max Wire Size: 12AWG



Size:Toothless 28mm Clips



The smooth toothless jaw solid copper construction allows these alligator clips to be used as both traditional quick electronic hook-up wire clip on test leads as well as soldering heat sinks to protect your most delicate components from overheating, scorching, melting, and other heat related damage. Solid copper alligator clips are chosen by most electronic hobbyist for their versatility as copper is both an excellent thermal and electrical conductor. Superior heat transfer compared to standard steel clip soldering heat sinks.

Features:

▪4x Solid Copper Alligator Clips for use as a soldering heat sink or quick clip on test lead wire connector
▪Rated for up to 5 amps and 12ga wire they can be soldered or crimped on
▪Solid Copper is both an excellent conductor of electricity and heat

Specifications:

▪Material: Solid Copper (NOT PLATED)
▪Overall Length: ~1.1" / 27.8mm
▪Max Jaw Opening: ~.25" / 6mm
▪Crimp or Solder Connection Barrel Tail
▪Current Rating: 5 Amps
▪Max Wire Size: 12AWG
