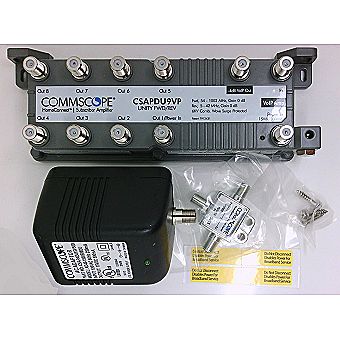

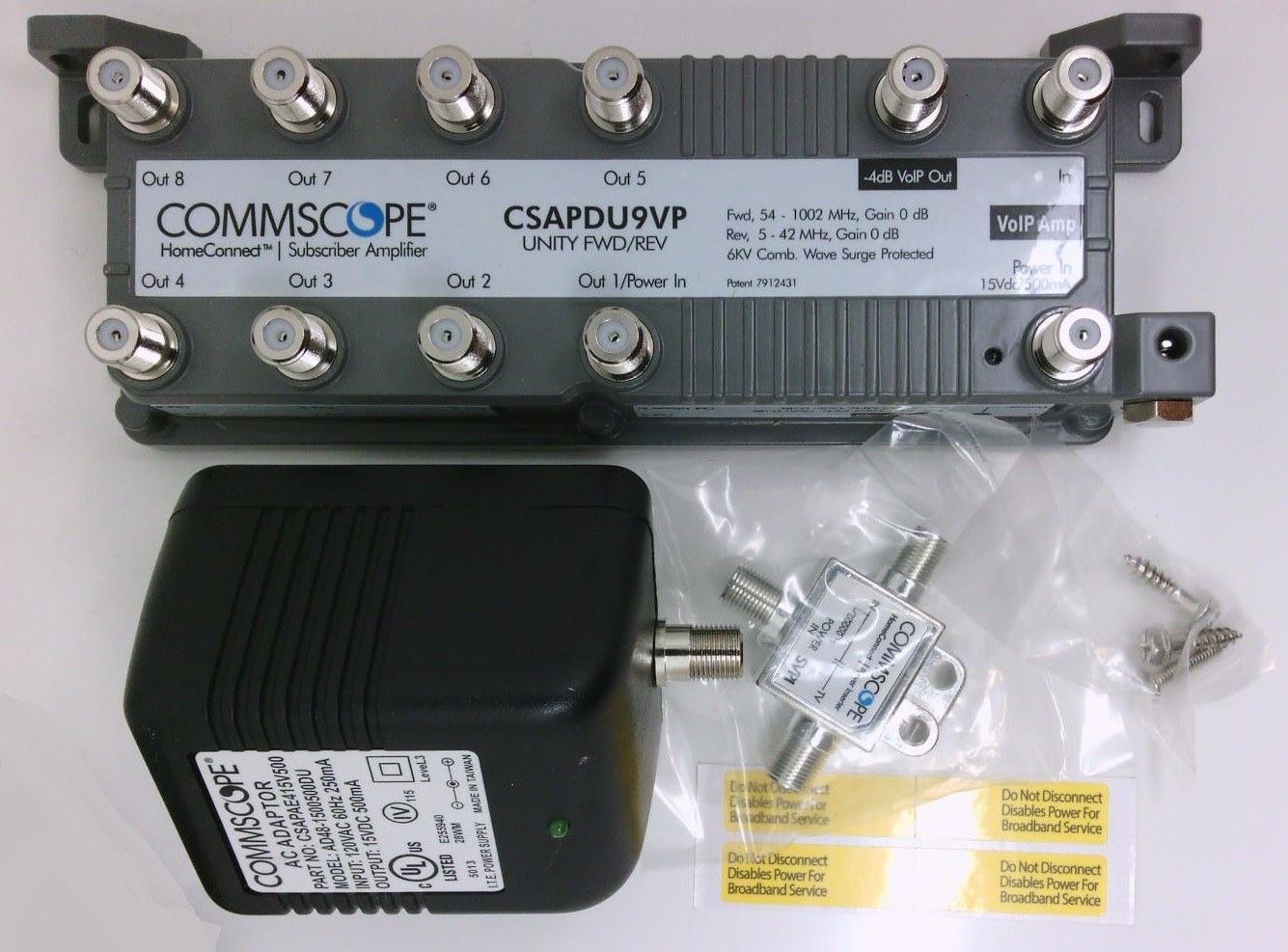

Commscope CSAPDU9VPI Passive VoIP Amplifier with Power Inserter

$ 19.99

Availability:
Out Of Stock
Product Code:
CSAPDU9VPI

Description

Broadband SolutionsCSAPDU9VPI
Passive VoIP Amplifier, unity forward/reverse, nine ports, with power inserter
Environmental Specifications
Operating Temperature   -40 °C to +60 °C (-40 °F to +140 °F)
Safety Standard   CE   |   SCTE

Electrical Specifications Rx (Uplink)
Operating Frequency Band   5 – 42 MHz
Insertion Loss, video ports   0.00 dB
Flatness   ±1.0 dB
Return Loss, minimum   20.00 dB
Noise Figure, maximum * 18.00 dB

Electrical Specifications Tx (Downlink)
Operating Frequency Band   54 – 1002 MHz
Gain, video ports   0.00 dB
Flatness   ±1.0 dB
Return Loss, minimum   20.00 dB
Noise Figure, maximum * 10.00 dB

Electrical Specifications VoIP
Insertion Loss Rx, VoIP ports, maximum   4.30 dB
Insertion Loss Tx, VoIP ports, maximum   4.50 dB
Return Loss, VoIP ports, minimum   20.00 dB

Electrical Specifications Isolation
Isolation at Frequency Band, output to output, minimum   25 dB @ 5–15 MHz   |   27 dB @ 15–40 MHz   |   25 dB @ 40–42 MHz   |   25 dB @ 54–1002 MHz
Isolation at Frequency Band, output to VoIP, minimum   25 dB @ 5–1002 MHz
Isolation at Frequency Band, VoIP to output, minimum   25 dB @ 5–1002 MHz
Isolation at Frequency Band, power port to RF output, minimum   60 dB @ 5–1002 MHz

Electrical Specifications
Group Delay, channel 2, maximum * 30 ns
Group Delay, channel 3, maximum * 15 ns
Group Delay, channel 4–6, maximum * 5 ns
Impedance   75 ohm
Operating Current at Voltage   380 mA @ 15 Vdc
Distortion Performance (CTB), minimum * 73 -dBc (relative to carrier)
Distortion Performance (CSO), minimum * 65 -dBc (relative to carrier)
Distortion Performance (X-Mod), minimum * 73 -dB
Distortion Performance (CCN), minimum * 60 -dBc (relative to carrier)
Distortion Performance (DTO), minimum * 60 -dBc (relative to carrier)
Distortion Performance (DSO), minimum * 55 -dBc (relative to carrier)
Hum Modulation, minimum   -75.00 dB
Group Delay, reverse, maximum   25 ns
Shielding Effectiveness, minimum   100 dB
Surge Capability Test Method   ANSI/SCTE 81   |   IEEE C62.41-B3 (6 kV, 3000 A, Combination wave) on all ports
Surge Capability Waveform   1.2/50 voltage and 8/20 current combination waveform   |   100 KHz ring wave waveform

General Specifications
Device Type   All ports down amplifier   |   Two-way subscriber amplifier   |   VoIP subscriber amplifier
Video Ports, quantity   8
VoIP Passive Ports, quantity   1
Brand   HomeConnect®
Application   Indoor   |   Outdoor
Includes   Power adapter   |   Power inserter
Video Standard   NTSC
Patent Number   7912431 (expires 8/2/2025)

Packed Dimensions
Carton Quantity   20
Height   190.50 mm   |   7.50 in
Length   508.00 mm   |   20.00 in
Width   247.65 mm   |   9.75 in
Shipping Weight   9.07 kg   |   20.00 lb
Regulatory Compliance/Certifications
Agency Classification
RoHS 2011/65/EU
ISO 9001:2008 Designed, manufactured and/or distributed under this quality management system



INCLUDED PRODUCTS
SVAPA15V500
Power Adapter for Subscriber Amplifiers, ac/dc, 15 V, 500 mA
SVPI
Power Inserter for Subscriber Amplifiers
