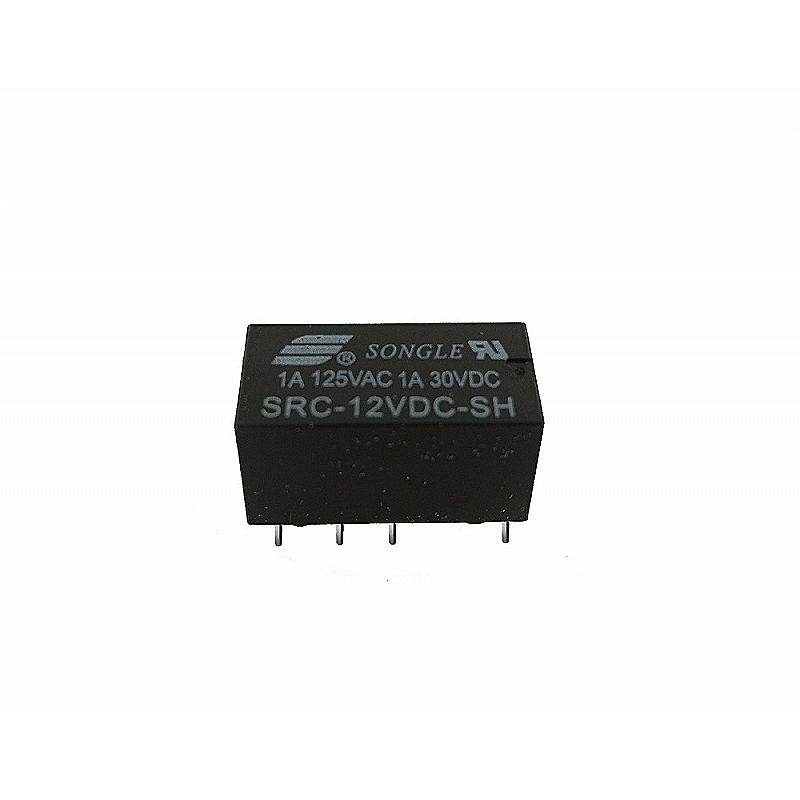

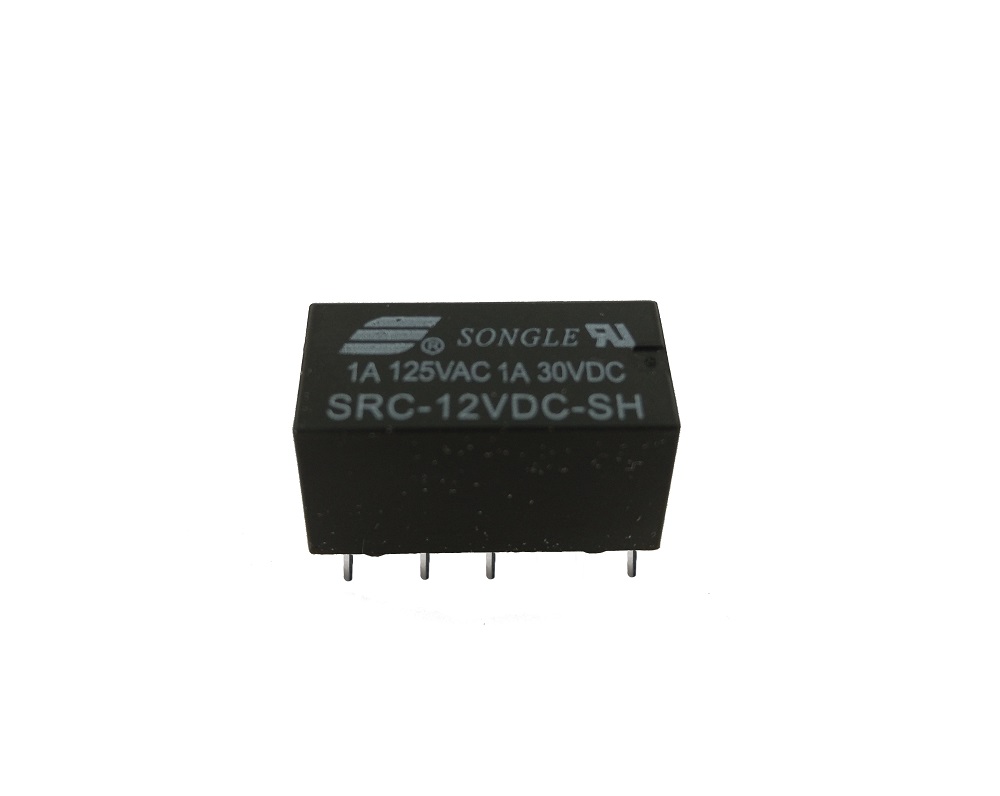

12v DC Relay - DPDT PCB 8-Pin Mount - Non-Latching Non-Polarized Electronic Low Signal High Sensitivity

$ 9.79

Be the first to leave a product review
Availability:
In Stock
Model #:
SRC-12VDC-SH
Share This Product

Description


  • Make sure this fits by entering your model number.
  • 12v DC Double Pole Double Throw 2 Form C (DPDT) bifurcated-cross-bar gold clad silver contacts.
  • Highly Sensitive Signal Relay - Low Coil Power Consumption 0.2w with a Coil Resistance of 405 and Nominal Voltage of 12 volts DC
  • Maximum Current Load is 1amp (1a / 1000ma) with a 8ms operation time and a 5ms release time (max
  • 8-pin PCB (PC Board) Through-Hole Mount - Standard 5.1mm x 7.6mm pin spacing Dip-2c style electromagnet switch relay matching 16-pin IC socket
  • Cross Reference Replacement Similar Part Numbers: Fujitsu RY-12W-K / Omron G5V-2-H1-DC12 / Axicom / TE V23105A5003A201 8-1393792-8

Capacity:12V Relay

12vdc (12 volt DC) Relay - DPDT PCB 8-Pin Mount - Non-Latching Non-Polarized Electronic Low Signal High Sensitivity Relay Brand: ProTechTrader / Manufacturer: Songle /Model: SRC-12VDC-SH
